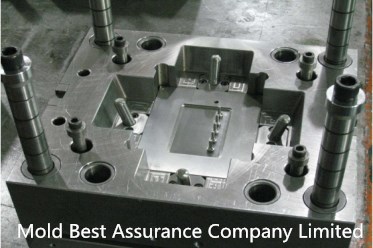

Molds consist of two primary halves, injection molds (A plate) and ejector molds (B plate). First, plastic resin enters the mold through a sprue in the injection mold.
The mechanical properties of an injection molded part are usually minimally affected. Some parts can have internal stresses in them.

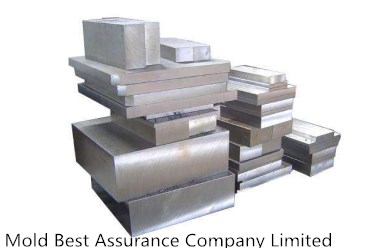

Tool steel or Aluminum are often used on injection molds. Mild steel, nickel, or epoxy are only suitable for prototype or very short production runs.

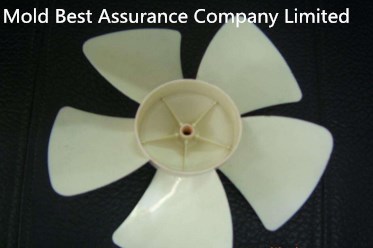

The most commonly used plastic molding process, injection molding, is used to create a large variety of injection molds with different shapes and sizes.

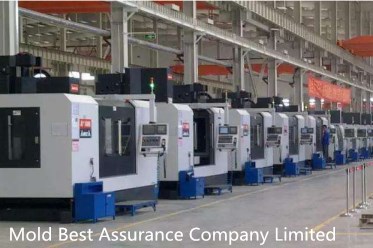

Injection Mold Companies use two main methods to manufacture molds: standard machining and EDM. Standard Machining, in its conventional form, has historically been the method of building injection molds with a knee mill.
The cost of manufacturing injection molds depends on a very large set of factors ranging from number of cavities, size of the parts (and therefore the mold), complexity of the pieces, expected tool longevity, surface finishes and many others.
Not only injection mold temperature determines melt temperature as it moves quickly through the mold. The melt temperature itself as it starts its journey through the injection mold (self-evidently) is the reference point. Speed of injection, particularly in thin sections, is of huge influence, as it will determine the degree of shear heating.
Many engineering materials like PBT (Polybutylene terephthalate) have a tendency of out-gassing. The best practices that I have to date are: Add 10mm wide vents spaced 30mm from each other all the way around parting line. Always follow the recommendations of the material company for vent depth.
